PX-D202 LANLITE™ DUAL ST TEST SET

PX-D202 LANLITE™ DUAL ST TEST SET
Product Code: PX-D202
Availability: Call For Availability
Price: $775.00
Qty:
   - OR -

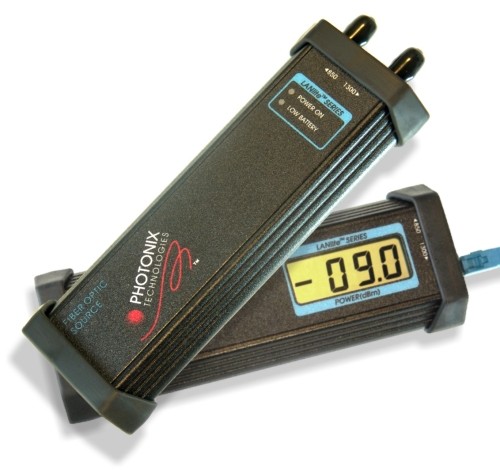

This set was designed to provide the test technician with an inexpensive, accurate, and easy to use instrument kit for making power and loss measurements in the fiber optic LAN environment.

The test set offers 850nm and 1300nm operation to provide power or loss measurement solutions for short wavelength fiber testing. Power for both the meter and source is supplied by a single cartridge loaded 9V battery which will yield a typical battery life of 80 hours and 14 hours respectively. A low battery indicator is included on both units to ensure accurate measurements.

Regarding durability, the LANLITE™ test sets are built of machined aluminum, not plastic, and therefore have structural integrity and a feel superior to that of most fiber test equipment. Finally, these units are very easy to use. To make a power measurement, simply connect the fiber, flip the power switch and begin testing.

Parameter Value Parameter Value
Model PX-D202 Meter Accuracy ± 0.3 dB
Wavelength Source 850±20nm/1300±50nm Meter Detector Ge
Fiber Size 100/140 (max) Operating Temperature 0°C to 50°C
Port Style ST Storage Temperature -10°C to 60°C
Source Pmin -20dBm Humidity 10% to 90% non-condensing
Source Stability ± 0.05 (dB/8hr) Power Standard 9V Alkaline
Source Bandwidth 60nm/200nm (max) Battery Life

14+ hrs (Source) (typ)

80+ hrs (Meter) (typ)

Meter Resolution 0.01db



~ Meter and Source: 850nm and 1300nm
~ Ultra low cost
~ 0.01db resolution with zero reference
~ True stand alone meter
~ Temperature stabilized operation
~ Low battery indication
~ Sealed waterproof carry case
