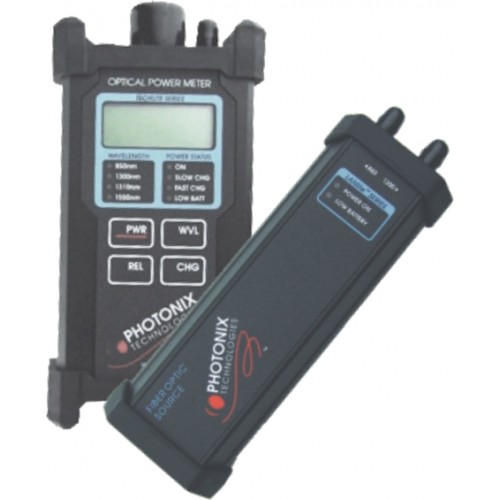

PX-D722 HYBRID DUAL LED DATALOGGING TEST SET

PX-D722 HYBRID DUAL LED DATALOGGING TEST SET
Product Code: PX-D722
Availability: Call For Availability
Price: $1,395.00
Qty:
   - OR -

Photonix Hybrid series test kits are comprized of TECHLITE™ series datalogging meters coupled with basic LANLITE™ series sources.
As with all Photonix test instruments, the internal circuitry is housed within an aluminum extrusion with high impact rubber bumpers. In addition, the instruction guide is fully laminated to make it weather-resistant and virtually tear-proof.

The TECHLITE™ meter, in relative measurement mode, will store the zero reference reading for all four wavelengths independently in non-volatile memory. This allows all zero references to be taken at one time and also allows the unit to be turned off while moving between locations preserve battery life. Also in relative mode, the meters will also display a 1dB analog type deviation pointer and an mini-display for real time splice tuning.

The TECHLITE™ meters utilize a graphic LCD screen to create unusually large and easy to read numbers as graphics to indicate power levels.
The included LANLITE™ LED source offers advanced temperature and coupling stability to provide superior test accuracy.

The meter is powered by either four AA alkaline batteries or an AC wall pack with four AA NiMH cells (both the wall pack and NiMH cells are included). In addition to standard charge mode, the units feature an emergency  quick charge mode that allows the user to charge the batteries in approximately 4 hours. The source is powered by a single cartridge loaded 9V battery.

~ Meter: 850nm / 1300nm / 1310nm / 1550nm
~ LED Source: 850nm / 1300nm
~ Source: ST style port
~ Crush resistant aluminum bodies
~ 0.01 dB Meter resolution
~ Meter: Stores up to 1000 readings per wavelength
~ Meter: Interchangeable adapters
~ Built in quick charger
~ Sealed waterproof carry case
~ Two year warranty
~ Temperature stabilized output

Power Meter PX-B240
Parameter Value Parameter Value
Detector Germanium Wavelength 850,1300,1310,1550nm
Fiber Type SM and MM Power Range(1300-1550nm) +3 to -60dBm
Power Rance(850nm) +8 to -55dBm Resolution 0.01dB
Accuracy ±0.25dB Battery Power US 120VAC 60Hz(inc),
NiMH 4-AA(inc),
or Alkaline
LED Light Source PX-C102
Parameter Value Parameter Value
Emitter LED Wavelength 850,1300nm
Pmin -20dBm Stability(8hr) ±.05/.08dB
Bandwidth (typ) 50/170nm Battery Power 9V battery
Both Products
Parameter Value Parameter Value
Operating Temp -5°C to 45°C Storage Temp -10°C to 60°C
Humidity 10% to 90% non-cond. Battery Life 10 Hours(typ)
