PX-B603 FLASHDETECTOR™ Leak Detection Set

PX-B603 FLASHDETECTOR™ Leak Detection Set
Product Code: PX-B603
Availability: Call For Availability
Price: $1,395.00
Qty:
   - OR -

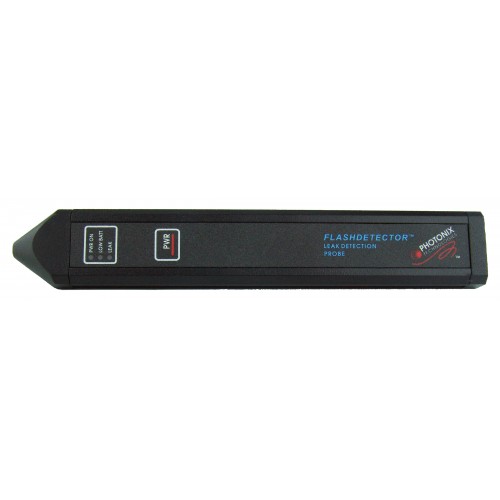

The FLASHdetector™ leak detection probe is state of the art in precision fiber optic fault location. Designed to find infrared radiation from splices, connectors, bends, damage, or open ports. While traditional fiber test equipment can identify bad fibers or approximate distance to a fault, pinpointing problems in the real world is often about luck, intuition, or trial and error.
The major advantage of the FLASHdetector™ over a visible laser however is that it can “see” cable faults in bright room light as well as in many blue, green, and black coated fibers!

Parameter PX-B603 Probe
Detector Filtered Ge
Sensitivity (mode sensitive) -60 dBm min
Modulation 500 Hz/2kHz
View Angle 20 degree
Operating Temperature -5°C to 45°C
Storage Temperature -10°C to 60°C
Humidity 10% to 90% non-condensing
Battery 4-AAA Alkaline
Battery Life 40 hrs



~ Full featured light source

~ Rugged aluminum packaging

~ Audio / Visual leak detection

~ Pocket size probe

~ Two year warranty
