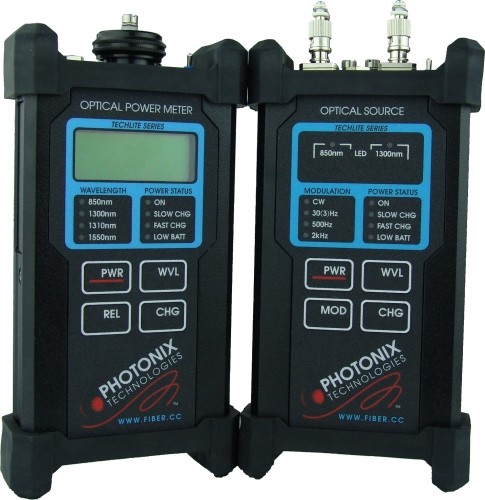

PX-D108M TECHLITE™ MILITARY GRADE LED TEST SET
Availability: Call For Availability
The TECHLITE™ PX-D108M tests set allow technicians to perform precise optical measurements in the field. When operated in absolute power mode, the B220M meter is used to determine the level of optical power being emitted from a transmitter. In relative mode, it is used with the included source to perform fiber loss measurements or splice tuning operations.TECHLITE™ meters and sources were designed to be rugged. As with all Photonix test instruments, the internal circuitry is housed within an aluminum extrusion with high impact rubber bumpers. In addition, the instruction guide is fully laminated to make it weather-resistant and virtually tear-proof.
The TECHLITE™ meter, in relative measurement mode, will store the zero reference reading for all four wavelengths independently in non-volatile memory. This allows all zero references to be taken at one time and also allows the unit to be turned off while moving between locations preserve battery life. Also in relative mode, the meters will also display a 1dB analog type deviation pointer and an mini-display for real time splice tuning.The TECHLITE™ meters utilize a graphic LCD screen to create unusually large and easy to read numbers as graphics to indicate power levels.
The included TECHLITE™ PX-C202M LED source offers advanced temperature and coupling stability as well as enhanced CPR performance to provide superior test accuracy. The PX-C202M also offers the ability to operate one or both outputs simultaneously in either CW, 30Hz, 500Hz, or 2kHz modulation for use with leak detectors or fiber identifiers. The units are powered by either four AA alkaline batteries or an
AC wall pack with four AA NiMH cells (both the wall pack and NiMH cells are included). In addition to standard charge mode, the units feature an emergency quick charge mode that allows the user to charge the batteries in approximately 4 hours. A 20 minute auto power off feature is also switch selectable from the top panel on all units.
| Power Meter PX-B220M | LED Source PX-C202M | ||
| Parameter | Value | Parameter | Value |
| Wavelength | 800-1600nm | Wavelength | 850,1300nm(+/-30nm) |
| Calibration Points | 850,1300,1310,1550nm | Fiber Size | 62.5/125 (max) |
| Power Range | +3 to -55dBm | Port Style | ST |
| Resolution | 0.01dB | Source Pmin | -21dB |
| Accuracy | ± 0.25dB | Stability (4hr) | ± 0.10dB |
| Linearity (+3 to -40dBm) | ± 0.30dB | Stability(0-50°C) | ± 0.50dB |
| Repeatability | ± 0.10dB | Repeatablity | ± 0.10dB |
| Detector | Ge | Bandwidth | 35(850nm)/170(1300nm) |
| Operation Modes | dB,dBm, Watts | CPR at 850nm | 25-29db +/- 1.0 |
| Light Susceptibility | <-55dBm | CPR at 1300nm | 21-25dB +/- 0.5 |
| Modulation | CW,30Hz,500Hz, 2kHz | ||
| Warmup Time | 15 minutes | ||
| Both Units | |||
| Parameter | Value | Parameter | Value |
| Operating Temp | 0°C to 50°C | Storage Temp | -20°C to 60°C |
| Humidity | 10% to 90% non-cond. | Power | 110/220VAC, 50-60Hz |
| Battery Life | 10 Hours(typ) | Charge Time | 12 Hours(typ) Trickle |
| Charge Time | 4 Hours(typ) Quick | Performance Spec | MIL-T-28800 |
~ Meter: 850nm / 1300nm / 1310nm / 1550nm with Interchangeable meter adapters
~ LED Source: 850nm/1300nm with SC,FC, or ST adapters
~ Reel sytle connector cleaner
~ MMF patch cords ST-FC, ST-SC, ST-LC
~ Crush resistant aluminum bodies
~ 0.01 dB Meter resolution
~ Controlled LED CPR operation
~ Built in quick charger
~ Sealed waterproof carry case
~ Two year warranty
|
