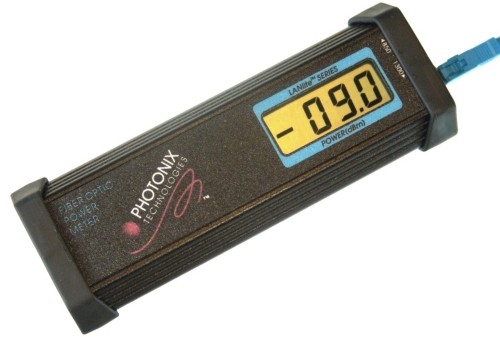

PX-B102 LANLITE™ DUAL 850 / 1300nm POWER METER

PX-B102 LANLITE™ DUAL 850 / 1300nm POWER METER
Product Code: PX-B102
Availability: Call For Availability
Price: $325.00
Qty:
   - OR -

The LANLITE™ series of optical power meters provides the test technician with an inexpensive, accurate, and easy to use instrument for making power and loss measurements in the LAN environment.

LANLITE™ meters are NIST traceable, calibrated test instruments featuring a dynamic range as broad as 50dBm and a resolution of 0.1dB. LANLITE™ meters also have distinct advantages over expensive
add-on fiber modules. LANLITE™ meters do not require a docking unit or mainframe to provide intelligence.

This is a dual wavelength models that  fit comfortably in most multi mode LAN environments. Power is supplied by a single cartridge loaded 9V battery which will yield a typical battery life of over 80 hours. A low
battery indicator is included to ensure accurate measurements. The oversized, high contrast display is updated over 5 times per second and features nearly instantaneous settling time!

Regarding durability, the LANLITE™ meters are built of machined aluminum, not plastic, and therefore have structural integrity and a feel superior to that of most fiber test equipment. In fact, LANLITE™ meters may likely be the toughest pocket sized meters on the market.

Parmeter Value Parameter Value
Model PX-B102 Detector Ge
Wavelength 850/1300nm Operating Temperature -5°C to 45°C
Fiber Type MM <100um Storage Temperature -10°C to 60°C
Dynamic Range 0 to -55dBm Humidity 10% to 90% non-condensing
Accuracy ± 0.3 Battery Life 80+ hrs (typ)



~ Single/Dual wavelength

~ Interchangeable port

~ Temperature stabilized output

~ CW and three modulation modes

~ NiMH, Alkaline or AC operation

~ Rugged aluminum body

~ Quick charge feature

~ Universal 2.5mm port

~ 1.25mm adapter available
