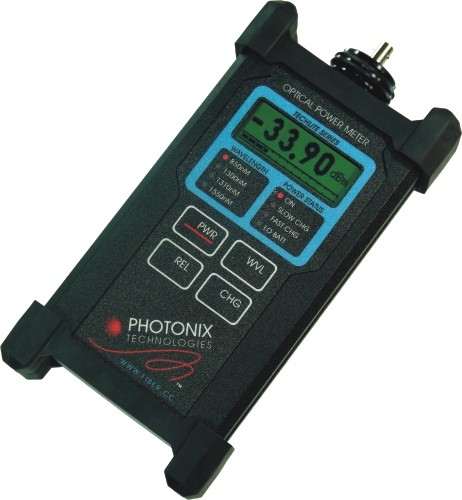

PX-B200 TECHLITE™ QUAD POWER METER

PX-B200 TECHLITE™ QUAD POWER METER
Product Code: PX-B200
Availability: Call For Availability
Price: $750.00
Qty:
   - OR -

TECHLITE™ meters are NIST traceable, calibrated test instruments featuring a dynamic range. TECHLITE™ meters also have distinct advantages over expensive add-on fiber modules. TECHLITE™ meters do not require a docking unit or mainframe to provide intelligence.

This unit comes with standard ST ports, this meter fit comfortably in most multi mode LAN environments. A low battery indicator is included to ensure accurate measurements. The oversized, high contrast display
is updated over 5 times per second and features nearly instantaneous settling time!

Regarding durability, the TECHLITE™ meters are built of machined aluminum, not plastic, and therefore have structural integrity and a feel superior to that of most fiber test equipment. In fact, TECHLITE™ meters may likely be the toughest

Parameter Value Parameter Value
Model PX-B200 Accuracy ± .25 dB
Wavelength 850/1300/1310/1550     Operating Temperature -5°C to 45°C
Fiber Type SM and MM Storage Temperature -10°C to 60°C
Range (850) +8 to -55 dBm Humidity 10% to 90% non-condensing
Range (1300-1550) +3 to -60 dBm Power NiMH 4-AA,ALK,120VAC/60Hz
Detector Ge Battery Life 10 hrs (typ)



~ Interchangeable port

~ Quad wavelengths with Relative mode(dB)

~ Very fast dual processor design

~ Temperature stabilized output

~ CW and three modulation modes

~ NiMH, Alkaline or AC operation

~ Rugged aluminum body

~ Quick charge feature
