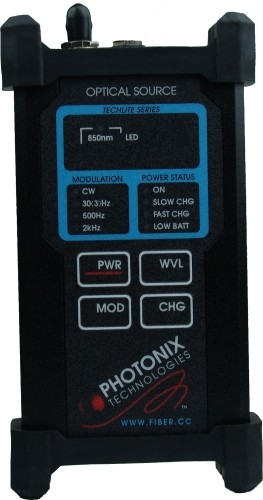

PX-C200 TECHLITE™ SINLGE 850nm LED SOURCE

PX-C200 TECHLITE™ SINLGE 850nm LED SOURCE
Product Code: PX-C200
Availability: Call For Availability
Price: $445.00
Qty:
   - OR -

The TECHLITE™ optical sources, when used with a power meter, allow technicians to perform precise optical loss measurements in the field. The sources provide the stable light output required by optical power meters to determine power loss in fiber, connectors, attenuators, or other passive optical components. Structurally identical to the TECHLITE™ meters, these sources were also designed to be rugged. As with all Photonix test instruments, the internal circuitry is housed in an aluminum extrusion with high impact rubber bumpers.

The TECHLITE™ sources with output wavelengths of 850nm LED,which has a modulated output at 30Hz, 500Hz, and 2kHz. This allows them to be used as tracer signal generators for use with most popular fiber identifiers or optical leak detection probes. The TECHLITE™ source are powered by either four AA alkaline batteries or an AC wall pack with four AA NiMH cells (both the wall pack and NiMH cells are included). In addition to standard charge mode, the units feature an emergency quick charge mode that allows the user to charge the batteries in approximately 1 hour.

Parameter Value Parameter Value
Model PX-C200 Operating Temperature -5°C to 45°C
Emitter LED Storage temperature -10°C to 60°C
Wavelength 850nm ± 20nm Humidity 10%to90%non-condensing
Pout (min) -17dBm(62.5/125) Power 4-NiMH AA 600mAh (inc)*
Stability ±.05/.08dB/8hr Battery Life 10 hrs (typ)
Bandwidth (max) 60nm Trickle Charge 12-14 hrs
Modulation 30Hz,500Hz,2kHz

* Power: US 120 vac 60Hz(inc), 4- Alkaline AA

~ ST style port

~ 850 nm single wavelength

~ Power output -17dBm into 62.5

~ Three modulations

~ Temperature stabilized output

~ Overfilling LED design

~ Rugged aluminum body

~ Quick charge feature
