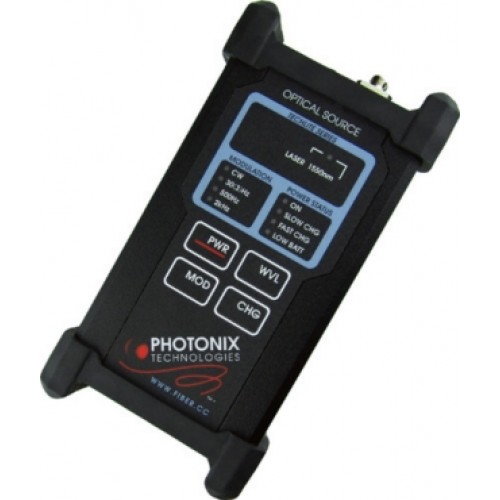

PX-C204 TECHLITE™ SINGLE 1550nm LASER SOURCE

PX-C204 TECHLITE™ SINGLE 1550nm LASER SOURCE
Product Code: PX-C204
Availability: Call For Availability
Price: $795.00
Qty:
   - OR -

The TECHLITE™ optical sources, when used with a power meter, allow technicians to perform precise optical loss measurements in the field. The sources provide the stable light output required by optical power meters to determine power loss in fiber, connectors, attenuators, or other passive optical components.Structurally identical to the TECHLITE™ meters, these sources were also designed to be rugged. As with all Photonix test instruments, the internal circuitry is housed in an aluminum extrusion with high impact rubber bumpers.

The TECHLITE™ sources with output wavelengths of 1550 LASER,which has a modulated output at 30Hz, 500Hz, and 2kHz. This allows them to be used as tracer signal generators for use with most popular fiber identifiers or optical leak detection probes.The TECHLITE™ meters are powered by either four AA alkaline batteries or an AC wall pack with four AA NiMH cells (both the wall pack and NiMH cells are included). In addition to standard charge mode, the units feature an emergency quick charge mode that allows the user to charge the batteries in approximately 1 hour.

Parmeter Value Parameter Value
Model PX-C204 Operating Temperature -5°C to 45°C
Emitter LASER Storage Temperature -10°C to 60°C
Wavelength 1550nm Humidity 10% to 90% non-condensing
Pout (min) -8dBm Power 4-NiMH AA 600mAh(inc)
US 120vac 60Hz (inc)
4- Alkaline AA
Stability ± 0.10dB/8hr Battery Life 10 hrs (typ)
Bandwidth 5nm (typ) Trickle Charge 12-14 hrs
Modulation 30Hz,500Hz,2kHz



~ 1550nm wavelength

~ ST, SC or FC style ports

~ Temperature stabilized output

~ CW and three modulation modes

 ~ Rugged aluminum packaging

~ NiMH, Alkaline or AC operation

~ Quick charge feature
