PX-Q557 FLASHPISTOL® AERIAL LEAK DETECTION SET

PX-Q557 FLASHPISTOL® AERIAL LEAK DETECTION SET
Product Code: PX-Q557
Availability: Call For Availability
Price: $8,600.00
Qty:
   - OR -

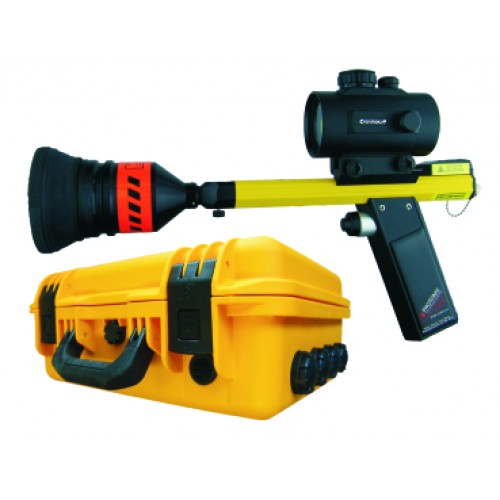

The PX-Q557 Flashpistol® aerial leak detection set is state of the art in precision fiber optic fault location. This set is comprised of a PX-Q550 and a PX-Q410. It is designed to find infrared radiation from firearm, rodent, or burn damage in aerial cables as well internal splice enclosure fiber faults. While an OTDR can find approximate distance to a problem, pinpointing problems in the real world is more often about luck, intuition, or trial and error.

The patented PX-Q550 can locate aerial cable faults from ground level or a single bucket location. It can also be used to pinpoint faults inside a splice enclosure or hub using interchangeable heads. To use the Flashpistol® probe, simply squeeze and hold the trigger and sweep over a suspect area.

Parameter Value PX-Q550 Value PX-Q410
Emitter Laser, FP, Class 1 Laser, FP, Class 1M
Wavelength 1550nm 1550nm
Bandwidth 5nm 5nm
Power <-1dBm +15dBm
Modulation 500Hz 2kHz
Detector InGaAs N/A
Sensitivity (mode sensitive) -85dBm, -75dBm, -40dBm N/A
Operating Temperature -5oC to 50oC -5oC to 50oC
Storage Temperature -10oC to 60oC -10oC to 60oC
Battery 9V Alkaline 4-AA NiMH
Battery Life 24hr standby, 10hr typical usage 14hr typical usage



~ Full two year warranty
~ Long range and local heads
~ Sunlight and fluorescent light immunity
~ Easy to use red-dot sighting scope
~ Flashpistol®: Standard 9V battery operation
~ Tracer: Rechargeable NiMH, Alkaline, or AC
~ All metal construction
