PX-Q650 FLASHFINDER® AERIAL IR LIGHT DETECTION PROBE

PX-Q650 FLASHFINDER® AERIAL  IR LIGHT DETECTION PROBE
Product Code: PX-Q650
Availability: Call For Availability
Price: $3,495.00
Qty:
   - OR -

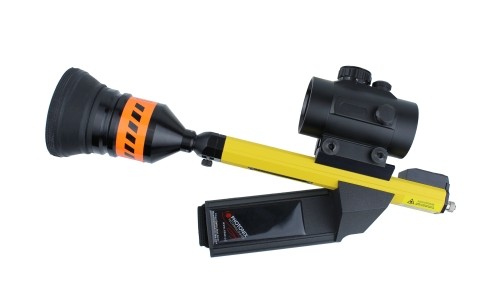

The PX-Q650 Flashfinder® aerial leak detection probe is state of the art in precision fiber optic fault location. It is designed to find infrared radiation from firearm, rodent, or burn damage in aerial cables as well internal splice enclosure fiber faults. While an OTDR can find approximate distance to a problem, pinpointing problems in the real world is more often about luck, intuition, or trial and error.

The patented PX-Q650 can locate aerial cable faults from ground level or a single bucket location. It can also be used to pinpoint faults inside a splice enclosure or hub using interchangeable heads. To use the Flashfinder® probe, simply squeeze and hold the trigger and sweep over a suspect area.

Parmater Value
Emitter Laser, FP, Class 1
Wavelength 1550nm
Bandwidth 5nm
Power <-1dBm
Modulation 500Hz
Detector InGaAs
Sensitivity (mode sensitive) -85dBm,-75dBm,-40dBm
Operating Temperature -5oC to 50oC
Storage Temperature -10oC to 60oC
Battery 9V Alkaline
Battery Life 24hr Standby, 10hr Typical usage



~ Full two year warranty

~  Long range and local heads

~ Sunlight and fluorescent light immunity

~ Easy to use red-dot sighting scope

~ Standard 9V battery operation

~ All metal construction
