PX-Q655 FLASHFINDER® STANDARD AERIAL SET

PX-Q655 FLASHFINDER® STANDARD AERIAL SET
Product Code: PX-Q655
Availability: Call For Availability
Price: $5,475.00
Qty:
   - OR -

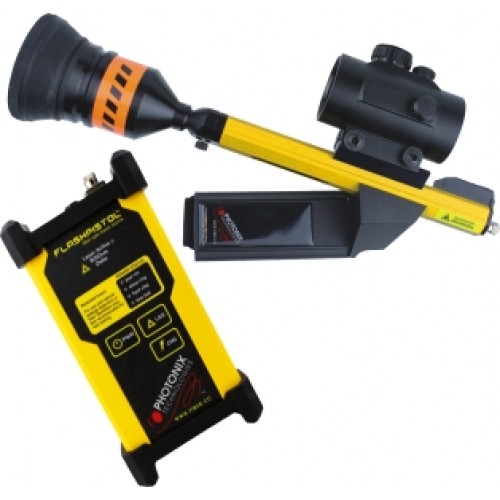

The PX-Q655 Flashfinder® aerial leak detection set is state of the art in precision fiber optic fault location. This set is comprised of the patented PX-Q650 Flashfinder® detection gun and a PX-Q404 tracer source. It is designed to find infrared radiation from firearm, rodent, or burn damage in aerial cables as well internal splice enclosure fiber faults. While an OTDR can find approximate distance to a problem, pinpointing problems in the real world is more often about luck, intuition, or trial and error.

The patented PX-Q655 can locate aerial cable faults from ground level or a single bucket location. It can also be used to pinpoint faults inside a splice enclosure or hub using interchangeable heads. To use the Flashfinder® probe, simply squeeze and hold the trigger and sweep over a suspect area.

Parameter Value PX-Q650 Value PX-Q404
Emitter Laser, FP, Class 1 Laser, FP, Class 1
Wavelength 1550nm 1550nm
Bandwidth 5nm 5nm
Power <-1dBm >+5dBm
Modulation 500Hz 2kHz
Detector InGaAs N/A
Sensitivity (mode sensitive) -85dBm, -75dBm, -40dBm N/A
Operating Temperature -5oC to 50oC -5oC to 50oC
Storage Temperature -10oC to 60oC -10oC to 60oC
Battery 9V Alkaline 4-AA NiMH
Battery Life 24hr standby, 10hr typical usage 14hr typical usage



~ Full two year warranty
~ Long range and local heads
~ Sunlight and fluorescent light immunity
~ Easy to use red-dot sighting scope
~ Standard 9V battery operation
~ All metal construction
