PX-B220M TECHLITE™ QUAD WAVELENGTH POWER METER - USMC SPEC

PX-B220M TECHLITE™ QUAD WAVELENGTH POWER METER - USMC SPEC
Product Code: PX-B220M
Availability: Call For Availability
Price: $995.00
Qty:
   - OR -

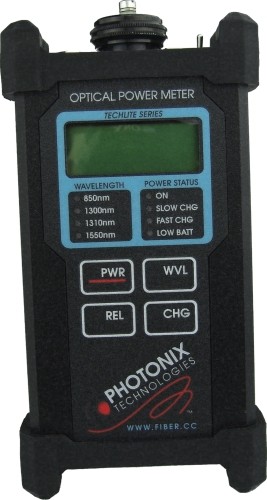

The TECHLITE™ series of optical power meters was designed to provide the test technician with an inexpensive, accurate, and easy to use instrument for making power and loss measurements in the LAN environment.

TECHLITE™ meters are NIST traceable, calibrated test instruments featuring a dynamic range.TECHLITE™ meters also have distinct advantages over expensive add-on fiber modules. TECHLITE™ meters do not require a docking unit or mainframe to provide intelligence. This unit comes with standard ST ports, this meter fit comfortably in most multi mode LAN environments. A low battery indicator is included to ensure accurate measurements. The oversized, high contrast display is updated over 5 times per second and features nearly instantaneous settling time!

Regarding durability, the TECHLITE™ meters are built of machined aluminum, not plastic, and therefore have structural integrity and a feel superior to that of most fiber test equipment. In fact, TECHLITE™ meters may likely be the toughest pocket sized meters on the market.

Parameter Value Parameter Value
Model PX-B220M Accuracy ± .25 dB
Wavelength 850/1300/1310/1550     Operating Temperature -5°C to 45°C
Fiber Type SM and MM Storage Temperature -10°C to 60°C
Range (850) +3 to -55 dBm Humidity 10% to 90% non-condensing
Range (1300-1550) +3 to -60 dBm Power NiMH 4-AA,ALK,120VAC/60Hz
Detector Ge Battery Life 12 hrs (typ)



~  Interchangeable port

~ Quad wavelengths with Relative mode(dB)

~ Very fast dual processor design

~ Temperature stabilized output

~ Large character backlit graphic desplay

~ CW and three modulation modes

~ NiMH, Alkaline or AC operation

~ Auto power off (20 minutes)

~ Rugged aluminum body

~ Quick charge feature
